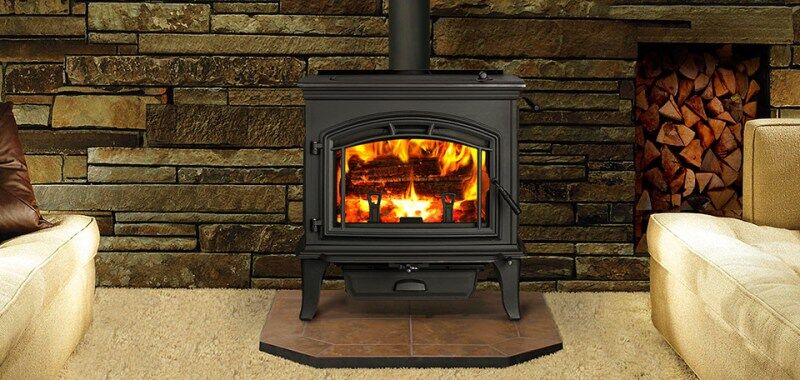

Quadra-Fire Explorer III Wood Stove
Features/Specs
PERFORMANCE NEVER LOOKED SO GOOD
Get maximum heat and a clean burn, with Quadra-Fire Four-Point Burn System, delivering 70,300 BTUs of performance you can see. Eliminate the hassle and save time with Automatic Combustion Control (ACC) burn technology, simply load the wood, light the fire and walk away. Quick and easy cleaning with the ash removal system (ARS). Top-load feature makes it easier to build and maintain your fire.
AVE BURN TIME 16hrs
AVE EFFICIENCY 67%
PEAK EFFICIENCY 91%
EMISSIONS 1.2/kg
HEATING CAPACITY up to 35sq
MAX LOG LENGTH 480mm
Stove Finish
The Explorer III is available in a number of colour finishes.
* Classic Black
* Porcelain Mahogany
* Porcelain Black
* Porcelain Blue
* Porcelain Frost
PERFORMANCE – Get maximum heat and a clean burn, with the Quadra-Fire Four-Point Burn System
EASY TO OPERATE
– With the Automatic Combustion Control (ACC), simply load the wood, light the fire and walk away
– Quick and easy cleaning with the Quadra-Fire Ash Removal System (ARS)
– Top load feature (Explorer III) makes it easier to to build and maintain your fire
MOST DURABLE – Enjoy the looks and performance of cast iron, with a solid steel welded firebox, built to last
Model Specifications
| Appliance Width: | 30-1/8″ |
|---|---|
| Appliance Height: | 31-3/8″ |
| Appliance Depth1: | 28″ |
| Peak BTU/hr Output2: | 70,300 |
| Heating Capacity3: | 1,500 – 4,000 sq ft |
| Maximum Burn Time4: | 15 hrs |
| Firebox Capacity: | 3.0 cu ft |
| Recommended Log Length: | 22″ |
| Viewing Area: | 286 sq in |
| Efficiency5: | 74.4% |
| Emissions: | 2.0 grams/hour |
Downloads:
Quadra-Fire Explorer III Installation Manual
Quadra-Fire Explorer III Product Brochure
Quadra-Fire Explorer III Owners Manual
